Shredders and Crushers - Primary Crushers | TYRANNOSAURUS 8800
Primary crusher for waste
EXCELLENT PRICE-PERFORMANCE RATIO FOR MSW
For Unsorted Municipal Solid Waste

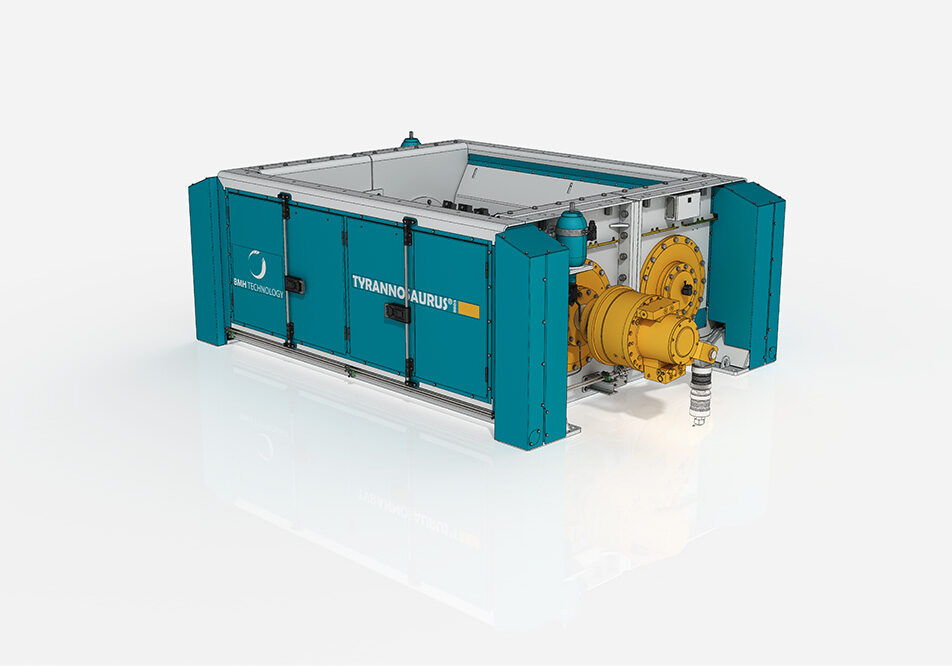

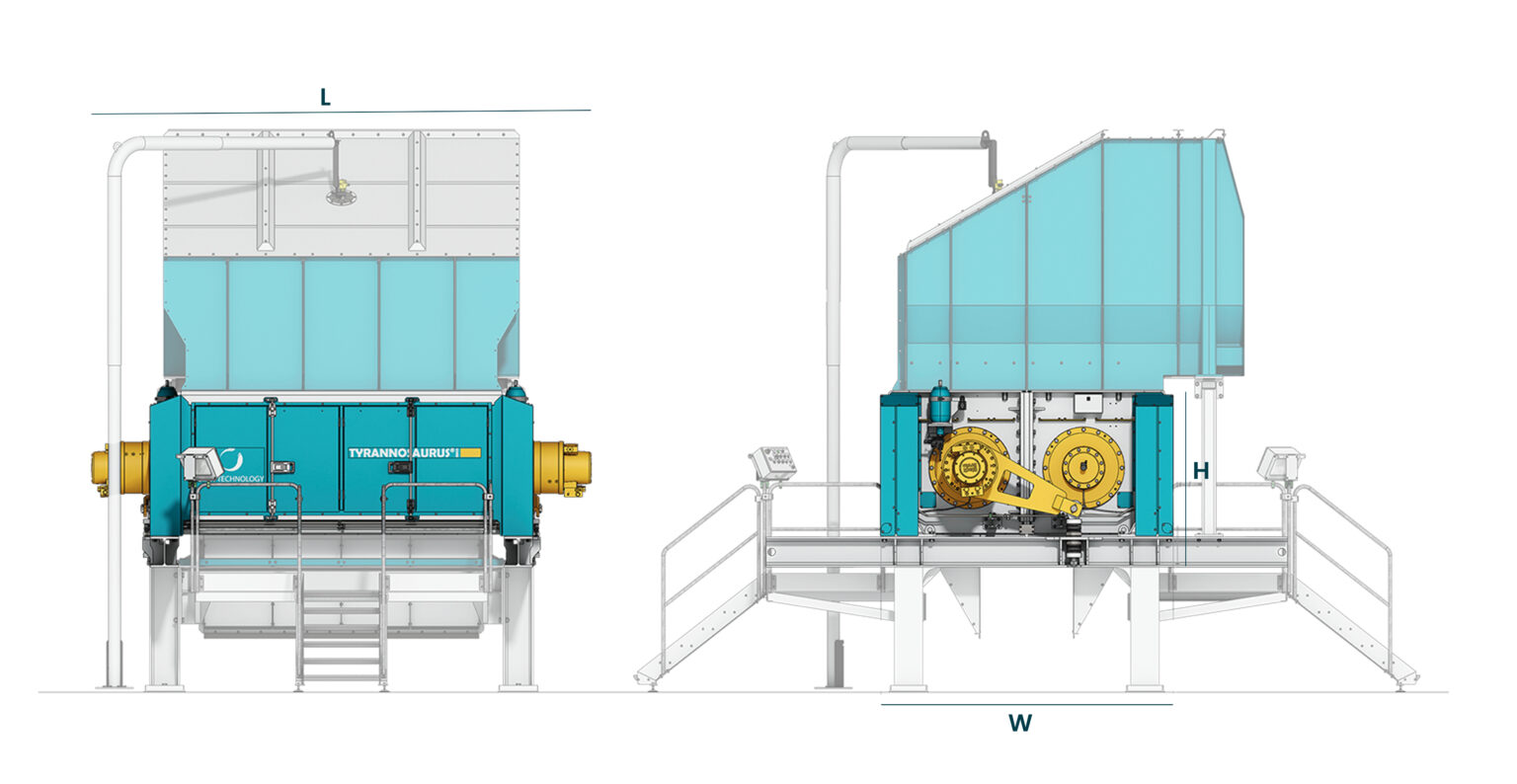

TYRANNOSAURUS® 8800 Primary Crusher for waste is a slow-rotating two-rotor shredder with an in-built screen. It's designed for industrial scale shredding of unsorted municipal solid waste (MSW).
Optimized Crushing Geometry
We have taken several aspects into account when designing the knives for the 8800 Primary Crusher.
The Choice Between Hydraulic and Electric Drive
The 8800 primary crusher is available with a hydraulic or an electric drive unit. Both drive technologies have their advantages.
Main Features and Applications
TYRANNOSAURUS 8800 Primary Crusher for waste
1
Even and controlled output particle size of 80–200 mm with high capacity.
2
Easy maintenance and removal of unshreddable items enable low operating expenses.
3
The 8800 series is available with hydraulic or electric drive unit.
4
Typical applications for 8800 series crushers are to provide:
- Effective crushing at waste-to-energy plants
- Alternative fuel for cement kilns
- RDF for high- efficiency boilers
Universal Waste Crusher for Unsorted MSW
The 8800 series primary crusher for waste is a strong and versatile all-around shredder. It's ideal for unsorted municipal solid waste (MSW) but can also handle specific types of ICW | I&C waste.
This universal waste crusher for unsorted municipal solid waste reduces the particle size down to 80-200 mm.
It's a unique combination of two rotors, in-built screens and advanced knife philosophy.
TYRANNOSAURUS 8800 Primary Crusher delivers high long-term capacity.

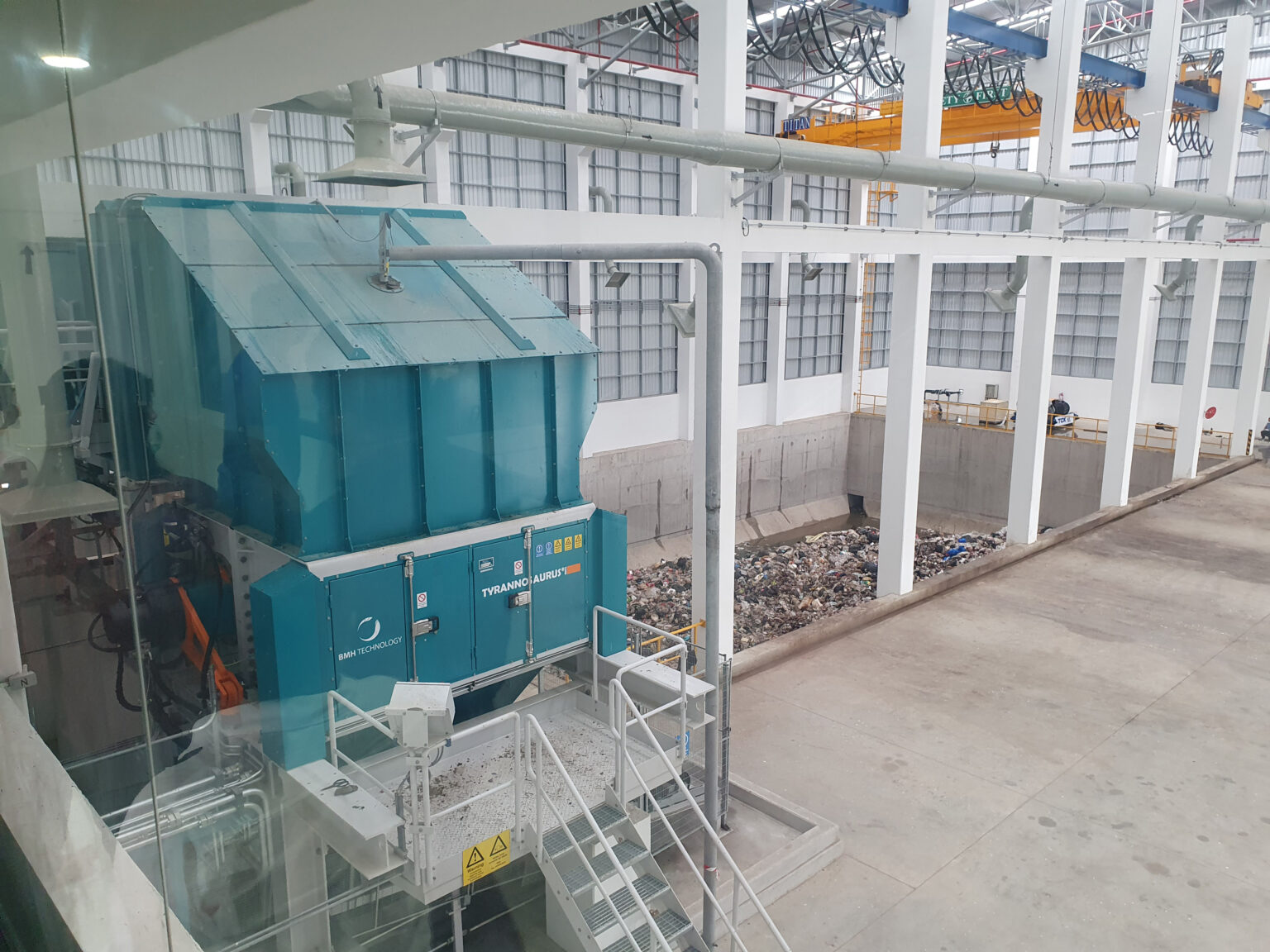

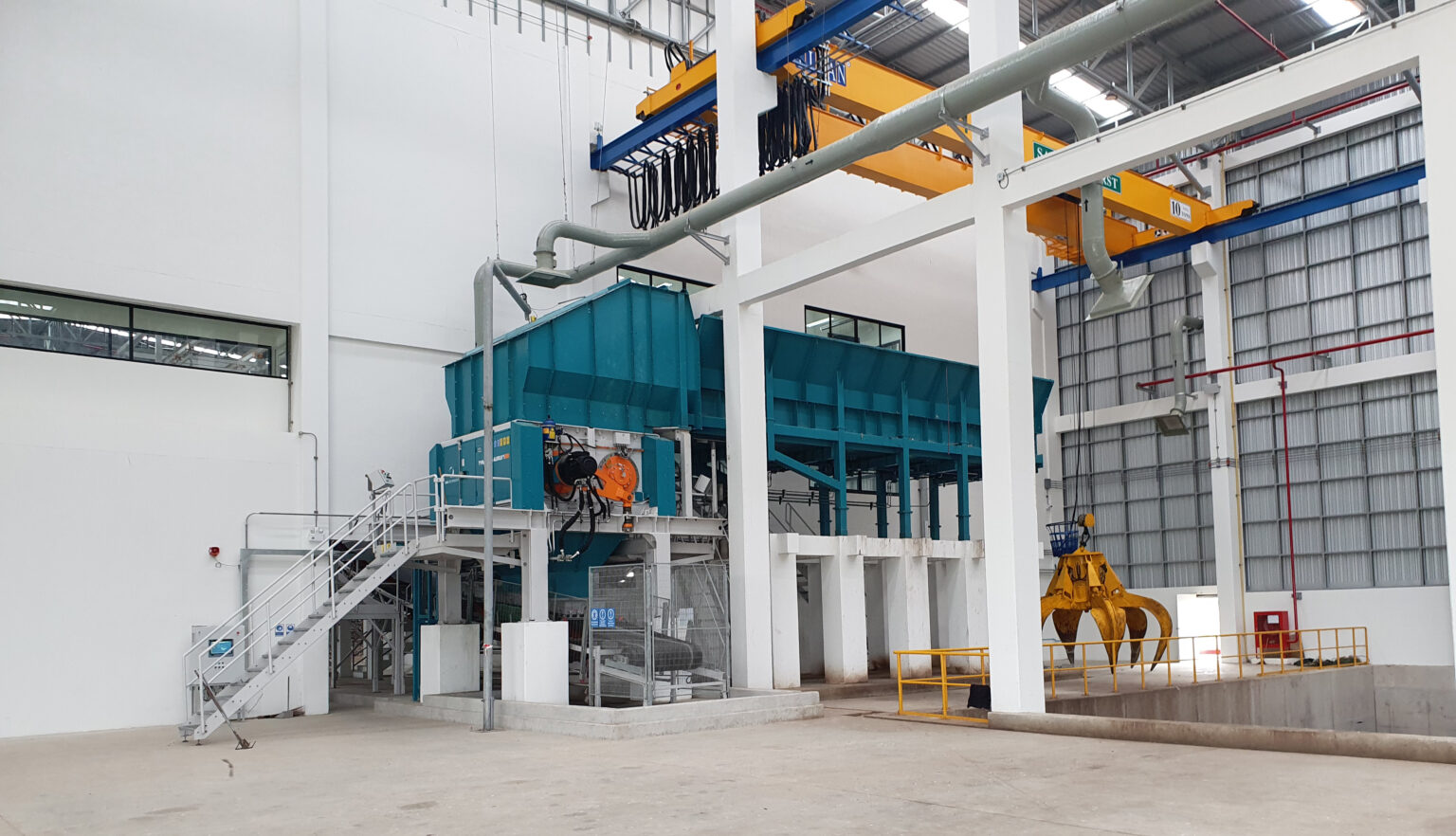

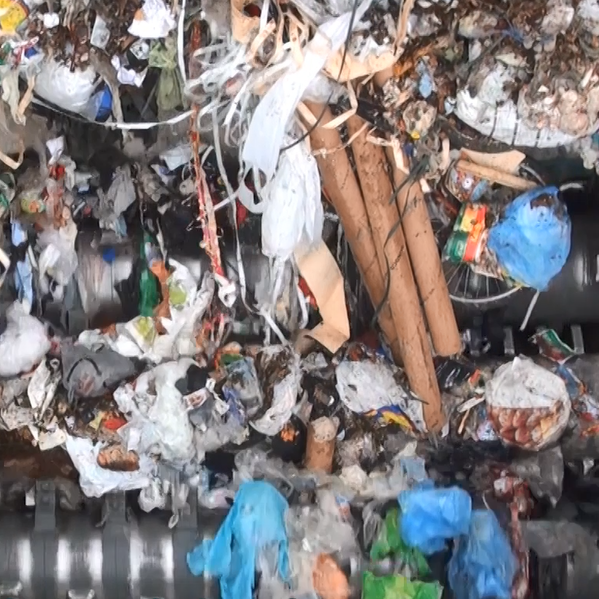

TYRANNOSAURUS 8800 Primary Crusher in action
Interested in an offer?
Contact us for a quote!
Read more about
knife philosophy
Optimized knife geometry for MSW

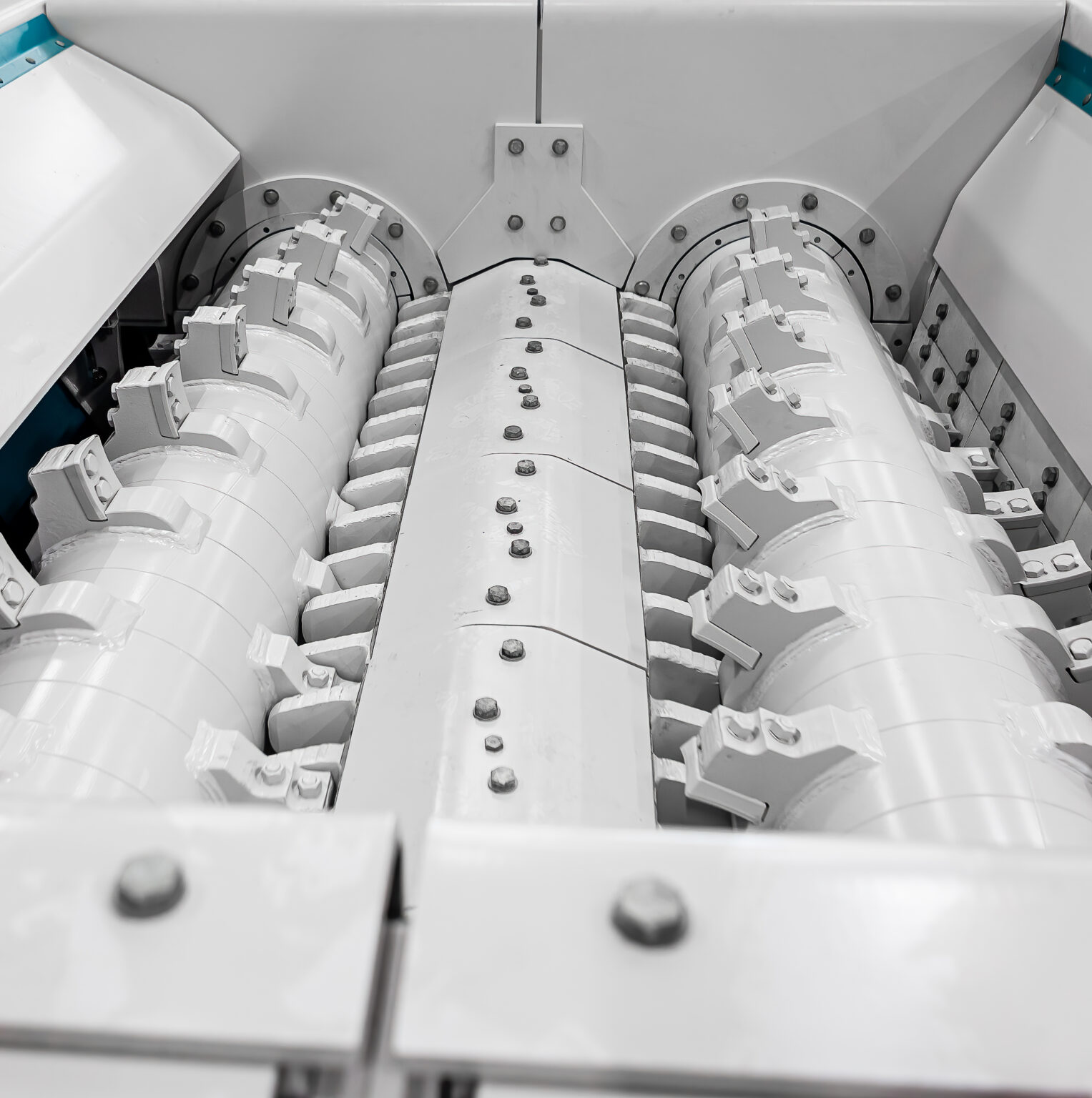

The shredding geometry has been optimized for MSW from several aspects.

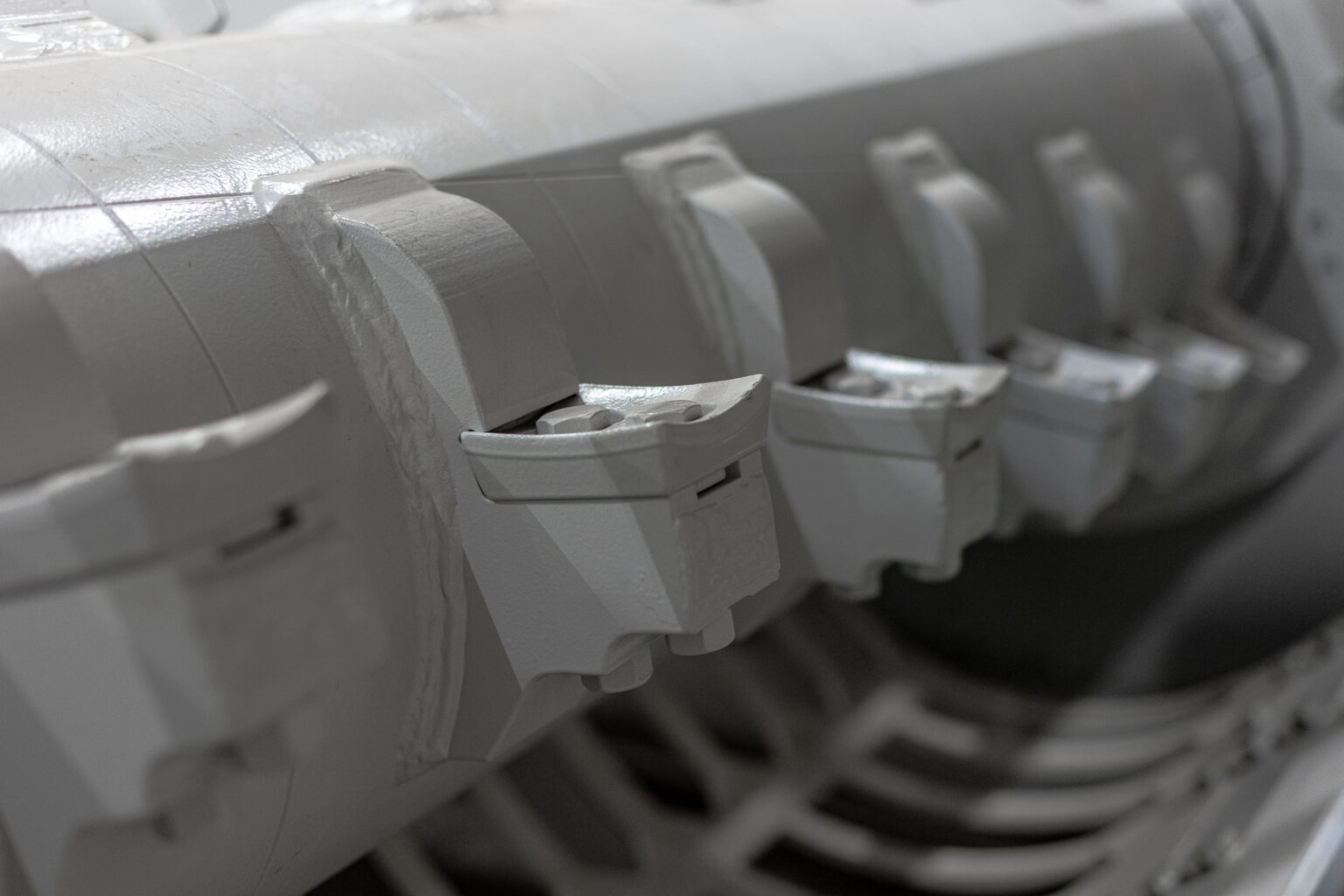

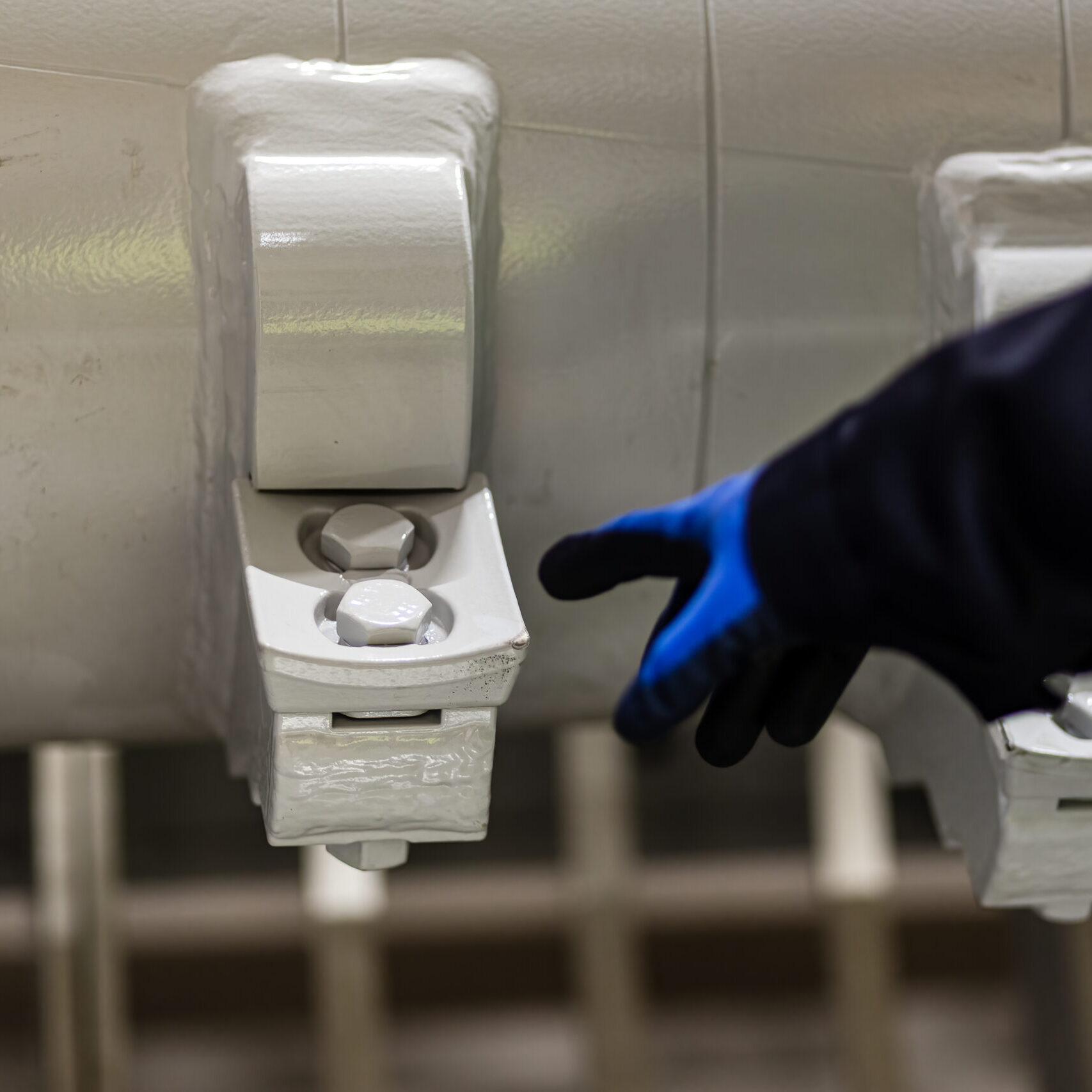

Rotor knives
- The knives pull the material in, yet they are still able to release it after shredding. Minimized wire and rope wrapping due to rotor geometry.
- Knife resistance for wear and fracturing due to material and shape design. Even load on the rotor thanks to spiral knife arrangement.
- Full focus on knife functionality, zero focus on appearance.
- The knives are fast and easy to service. There is no need for the operator to go inside the hopper as the rotor knives can be turned or changed through wide maintenance doors. Only standard tools are needed.
- In order to save costs, both ends of the knife can be utilized by turning the knife 180°.

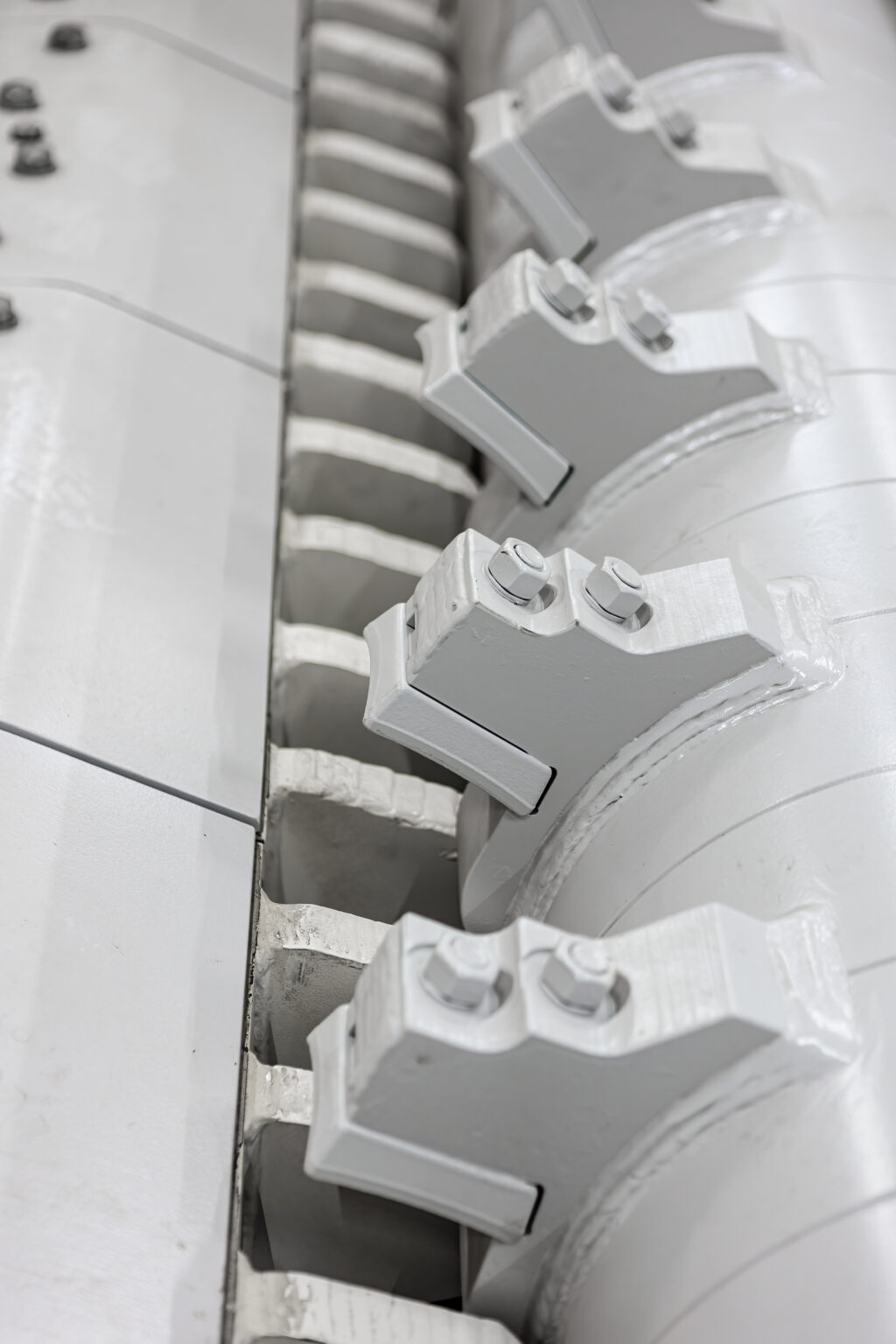

Counter knives
- The counter knife set can be rapidly exchanged into a spare one. The removed set can be re-welded in the workshop and reused multiple times. This reduces the down-time and also eliminates the risk of fire. However, the counter knives can be welded also in place if preferred.
Read more about
drive technologies

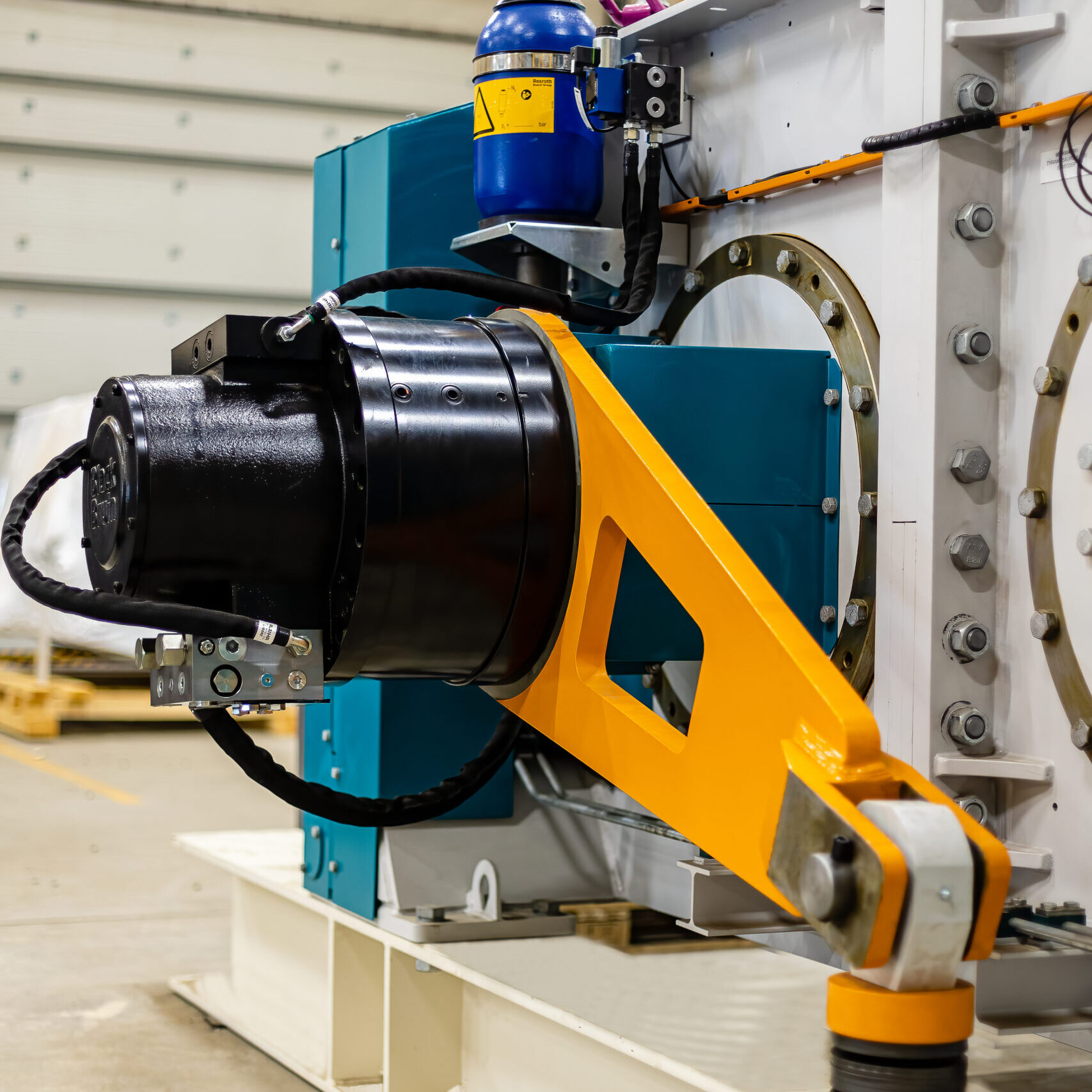

Hydraulic vs Electric Drive
The 8800 primary crusher is available with a hydraulic or an electric drive unit.
Both drive technologies have their advantages.
Hydraulic Drive
- Suitable for more challenging materials
- Built-in shock resistance
- Wider torque range
- Screen adjustment
- Advanced removal technologies
Electric Drive
- Lower OPEX
- Lower noise level
- Higher power efficiency
Interested in an offer?
Contact us for a quote!
What materials can be crushed?
TYRANNOSAURUS 8800 Primary Crusher is suitable for
Garden waste, such as grass, leaves and branches and other garden accumulated in households.
