Shredders and Crushers - Primary Shredders | TYRANNOSAURUS 7700
Primary shredder for waste
OPTIMAL CUTTING
TECHNOLOGY FOR ICW
For Industrial & Commercial Waste and Source-sorted Municipal Solid Waste

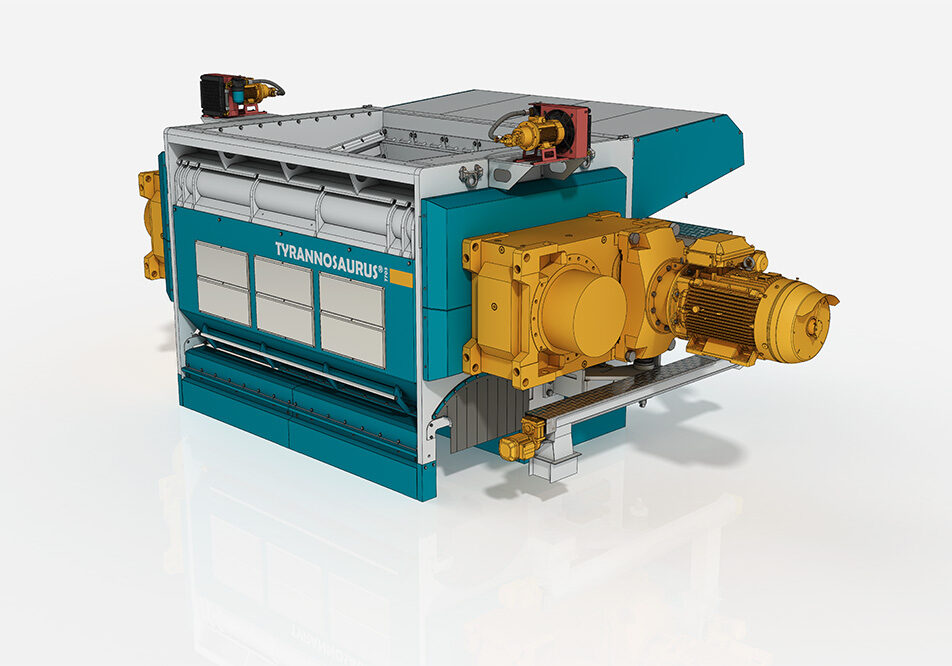

TYRANNOSAURUS® 7700 Primary Shredder for waste is a medium speed, single-rotor shredder equipped with a pusher.
It's designed for industrial scale shredding of industrial & commercial waste (ICW | C&I waste) and source-sorted municipal solid waste (MSW).
Unique Patented Features
The 7700 series is armed with patented Zero Gap® technology for optimal cutting performance.
Impact Protection™ is a feature of the 7700 series that prevents damages caused by unshreddable items.
Main Features and Applications
TYRANNOSAURUS 7700 Primary Shredder for waste
1
The 7700 plays a significant role in an RDF/ SRF process line where the particle size always matters. It will be tailored to produce particle size in a range of 40–70 mm with high capacity.
2
Zero Gap® cutting technology and Impact Protection™ function enable low OPEX.
3
The 7700 offers a choice between drive technologies. The shredder is available with either hydraulic or electric drive unit, which both have their benefits.
4
Typical applications for 7700 series shredders are to produce:
- Alternative fuel for cement kilns
- RDF for high-efficiency boilers
Single-rotor
Waste Shredder
with High Capacity and Even Particle Size
The 7700 series primary shredder for waste is the perfect solution when Zero Gap® cutting is a must-have.
This medium speed, single-rotor waste shredder can be tailored to produce 40-70 mm particle size with high capacity.
The shredder is equipped with a pusher, controlled by the shredder's intelligent automation system, which presses the material against the rotor.
Interested in an offer?
Contact us for a quote!
Read more about
Impact Protection™
Protection against unshreddable objects

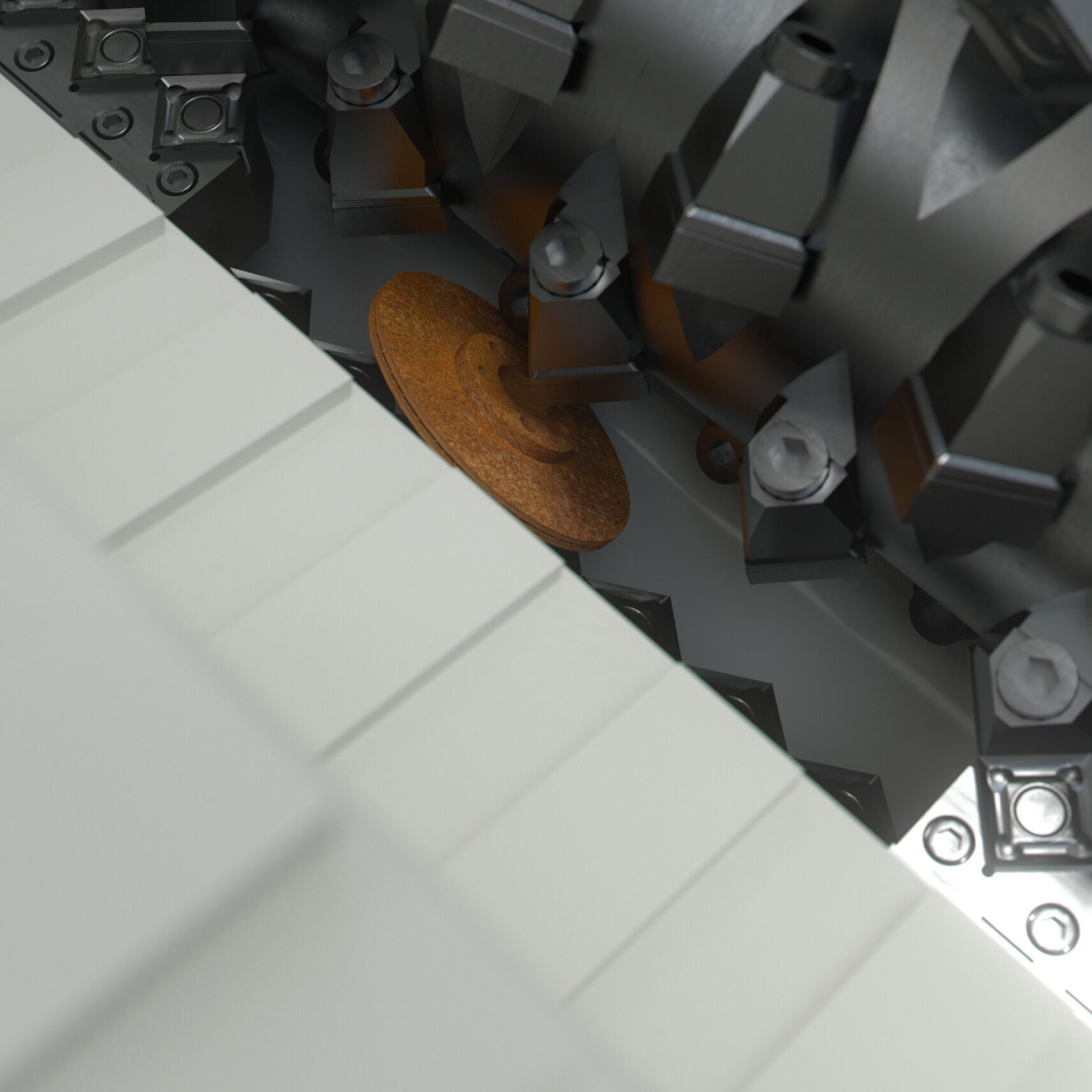

Typically, mixed waste streams contain unshreddable materials, such as rocks, scrap metals, and concrete objects. Once the pre-shredded and segregated waste reaches the secondary shredding stage, these objects should already be removed, yet sometimes individual particles remain.
To prevent damages to the shredder, the TYRANNOSAURUS 7700 series Fine Shredder for waste is armed with Impact Protection™ function.

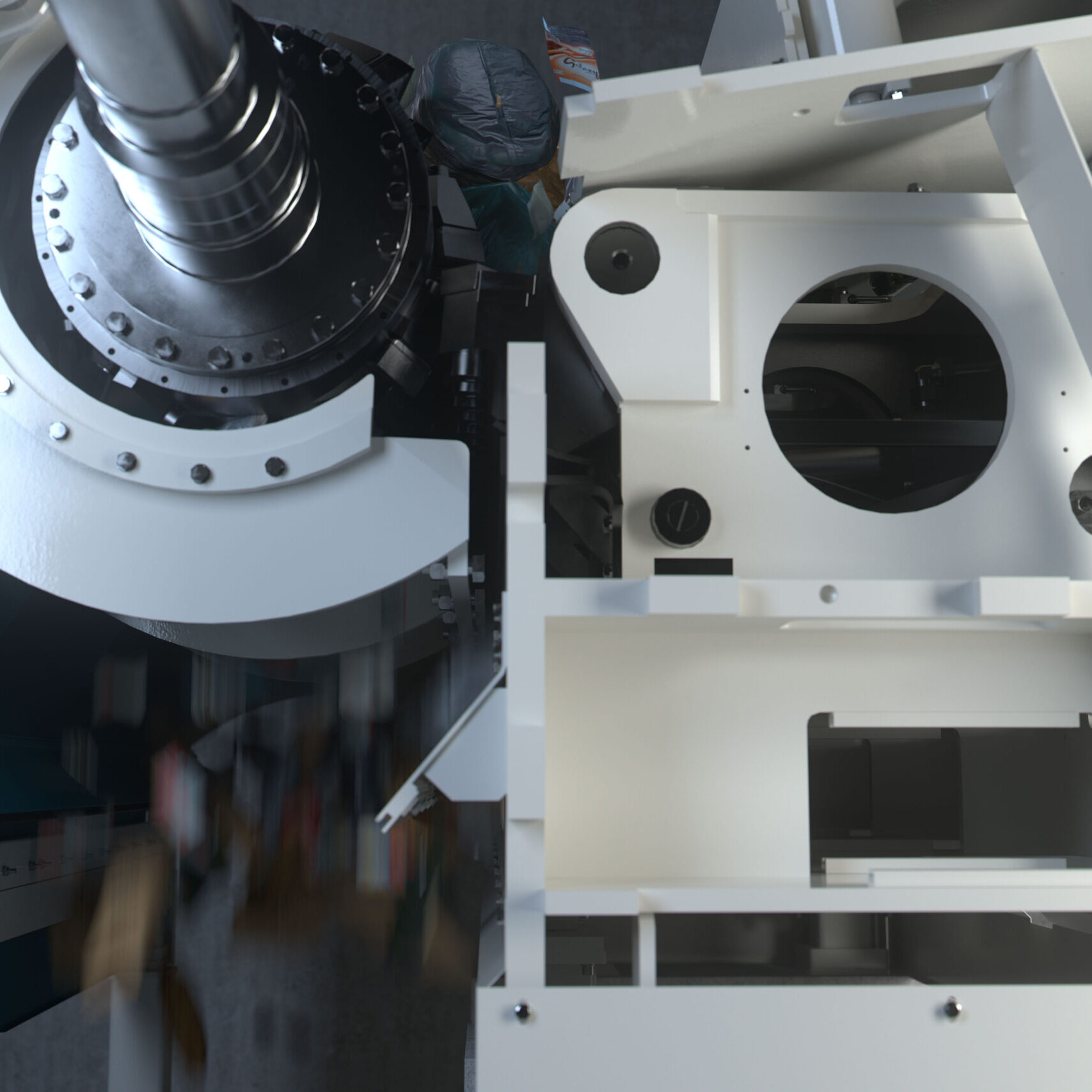

It is based on the counter-knives that are held in position hydraulically and allow an easy and fast removal of unshreddable materials.
The Impact Protection™ function both reduces the need for process stops and shortens the actual stops.
Read more about
Zero Gap®
Optimal cutting with adjustable knives

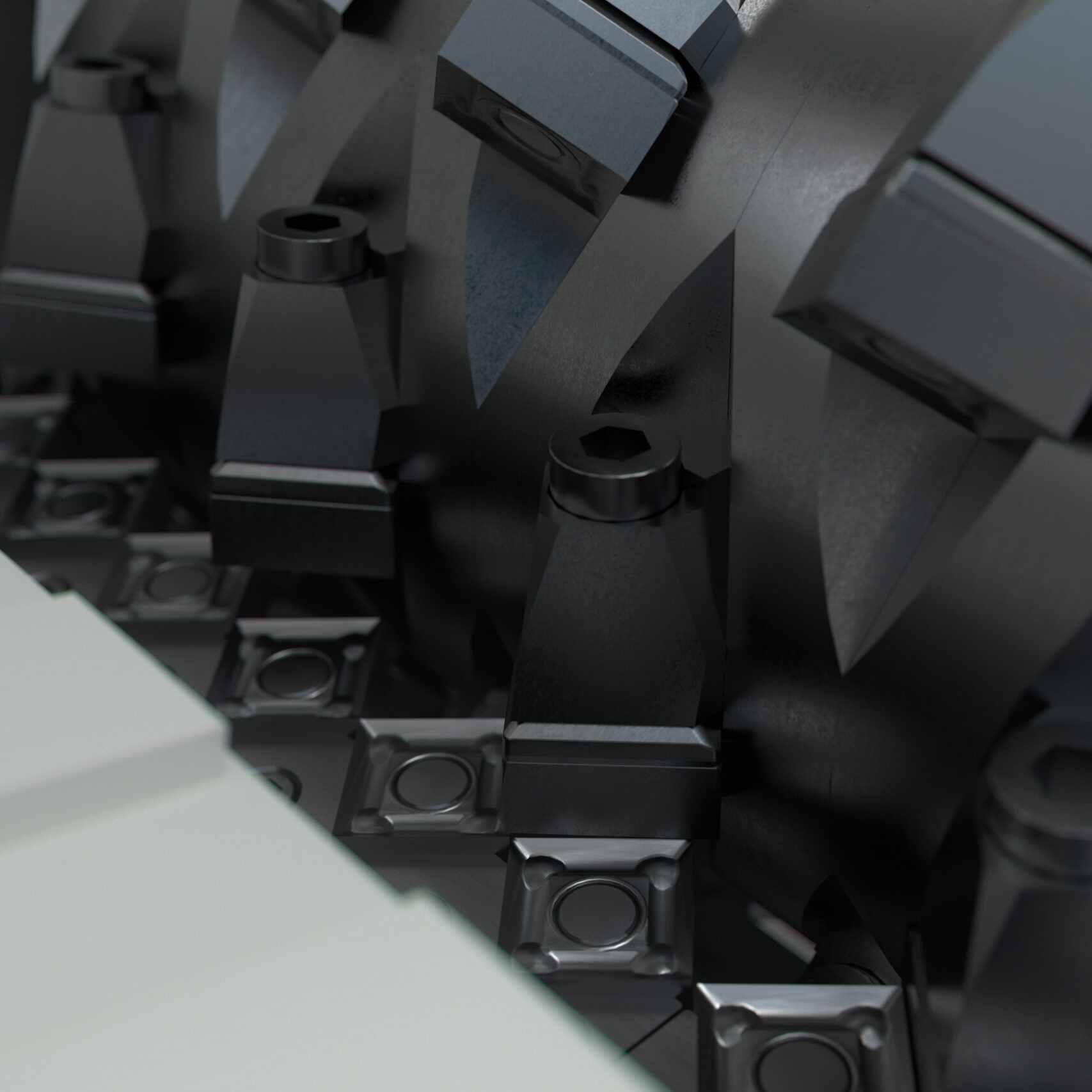

Shredding is a wear-intensive function. Zero Gap® shredding means that the particle size and quality are preserved even with wearing of the knives. This technology, patented by BMH Technology, maintains the cutting gap in zero, ensuring optimal cutting.
Thanks to Zero Gap®, the TYRANNOSAURUS® 7700 shredder can process even the thinnest waste materials, such as plastic films and foils. The shredder’s knives are hydraulically adjusted to keep on working optimally and lengthen the service interval.
The clean-cut equals lower power consumption and longer knife lifetime, while maintaining high capacity. All this contributes to achieving the lowest possible production cost.
Interested in an offer?
Contact us for a quote!
What materials can be shredded?
TYRANNOSAURUS 7700 Primary Shredder is suitable for
Compacted, solid waste bundles, which are secured by wire strapping and/or plastic wrapping.
