Shredders and Crushers - Oversize Shredders | TYRANNOSAURUS 7500
Oversize shredder for waste and wood
RELIABLE REJECT SHREDDER FOR INDUSTRIAL WASTE
For Pre-shredded Industrial & Commercial Waste and Wood
TYRANNOSAURUS® 7500 Oversize Shredder for waste is a medium speed, single-rotor shredder.
It's designed for industrial scale shredding of pre-shredded industrial & commercial waste (ICW | C&I waste) and works ideally e.g. for wood, textile, cardboard and plastics.
Unique Patented Features
The 7500 series is armed with patented Zero Gap® technology for optimal cutting performance.
Impact Protection™ is a feature of the 7500 series that prevents damages caused by unshreddable items.
Main Features and Applications

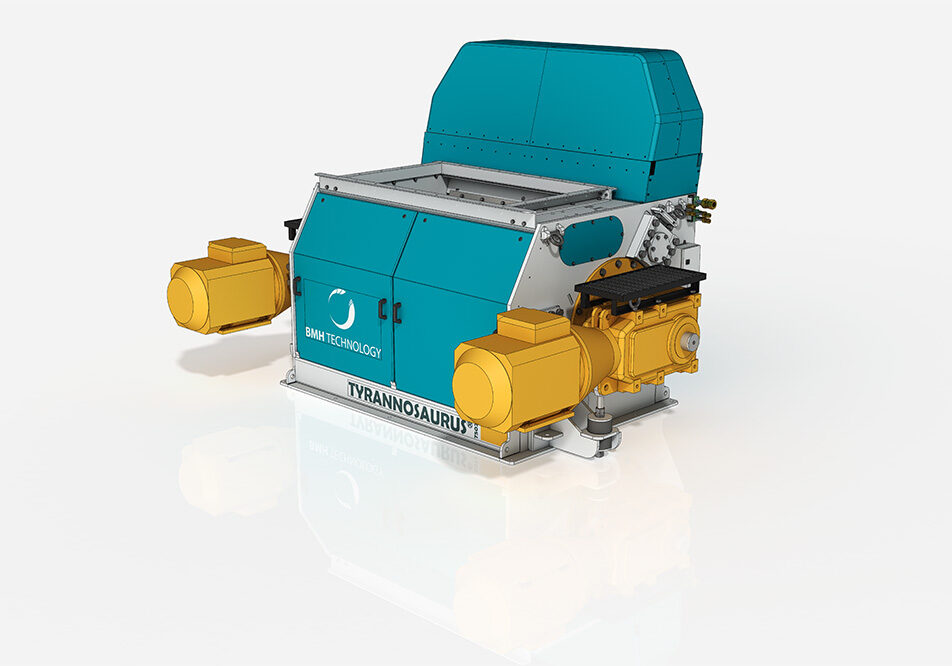

TYRANNOSAURUS 7500 Oversize Shredder for waste and wood
1
The counter knives are held in position hydraulically by Impact Protection™, which protects the 7500 from unshreddable items.
2
The knife gap can be adjusted to zero by Zero Gap® technology, which maximizes the shredding capacity.
3
The screen model can be selected according to the output particle size requirement.
4
Typical applications for 7500 series shredders are:
- Reject shredding in SRF production processes
- To secure the fuel quality for SRF end-users.
Flexible Single-rotor Waste Shredder with Easy Maintenance
The 7500 series Oversize Shredder for waste and wood is a flexible and reliable choice for size reduction of rejects and SRF fuel quality control.
This medium speed, single-rotor waste shredder typically produces 40-70 mm particle size depending on the selected screen aperture size.

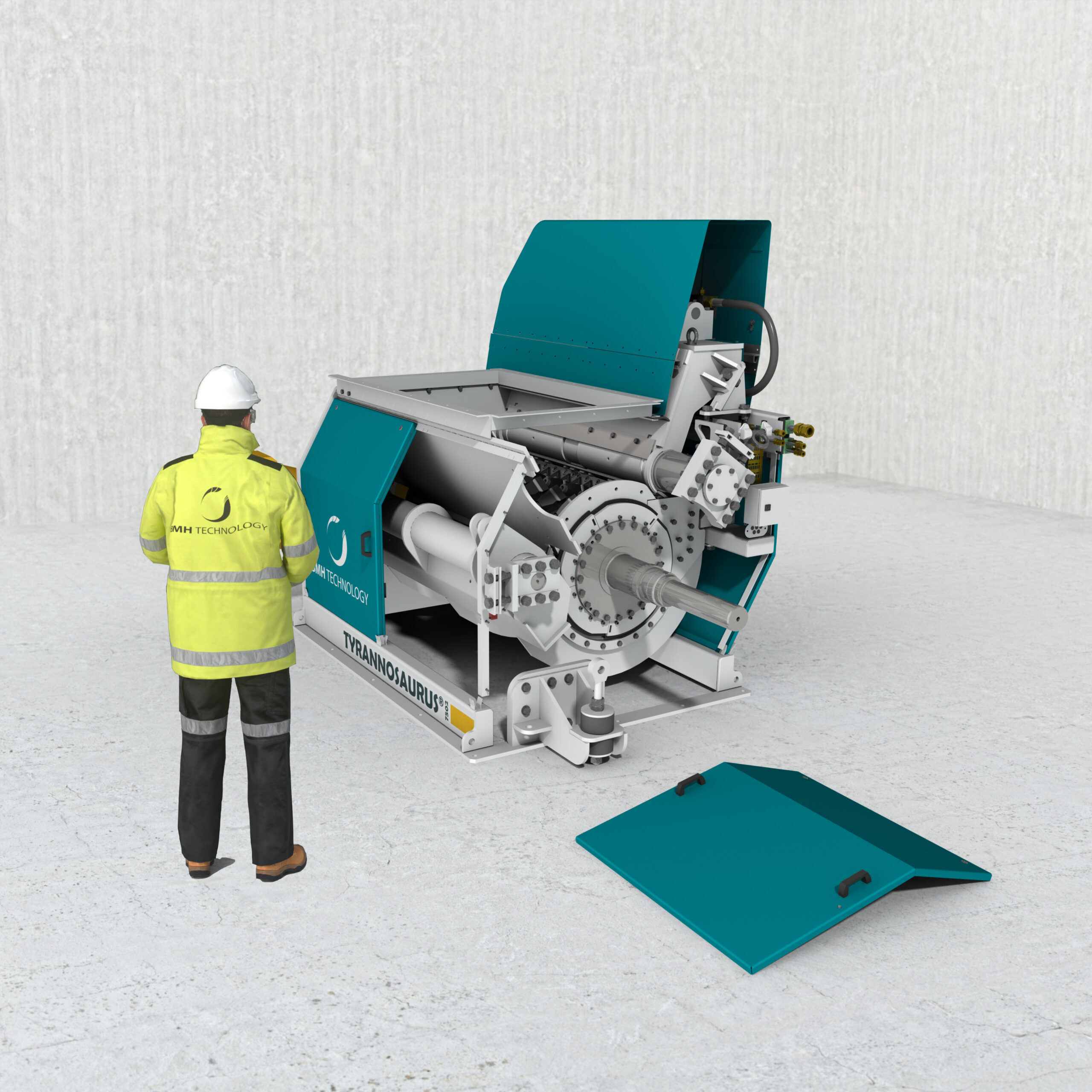

The shredder has large maintenance doors that provide easy access to the screens and knives. The knives and counter knives are easy and fast to replace, which enables maximum up-time.
Interested in an offer?
Contact us for a quote!
Read more about

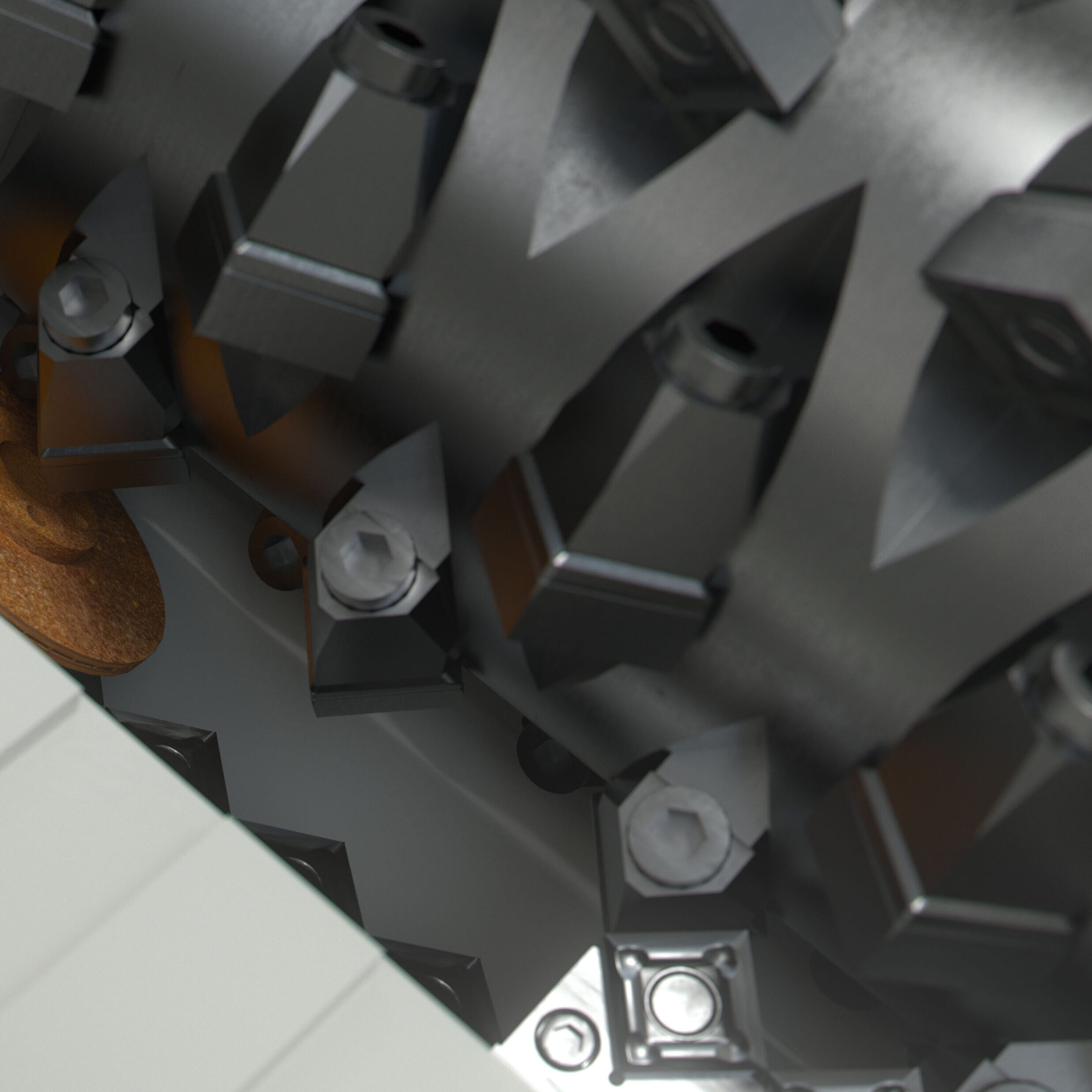

Impact Protection™
Protection against unshreddable objects
Typically, mixed waste streams contain unshreddable materials, such as rocks, scrap metals, and concrete objects. Once the pre-shredded and segregated waste reaches the secondary shredding stage, these objects should already be removed, yet sometimes individual particles remain.
To prevent damages to the shredder, the TYRANNOSAURUS 7500 series Fine Shredder for waste is armed with Impact Protection™ function.
It is based on the counter-knives that are held in position hydraulically and allow an easy and fast removal of unshreddable materials.
The Impact Protection™ function both reduces the need for process stops and shortens the actual stops.
Read more about

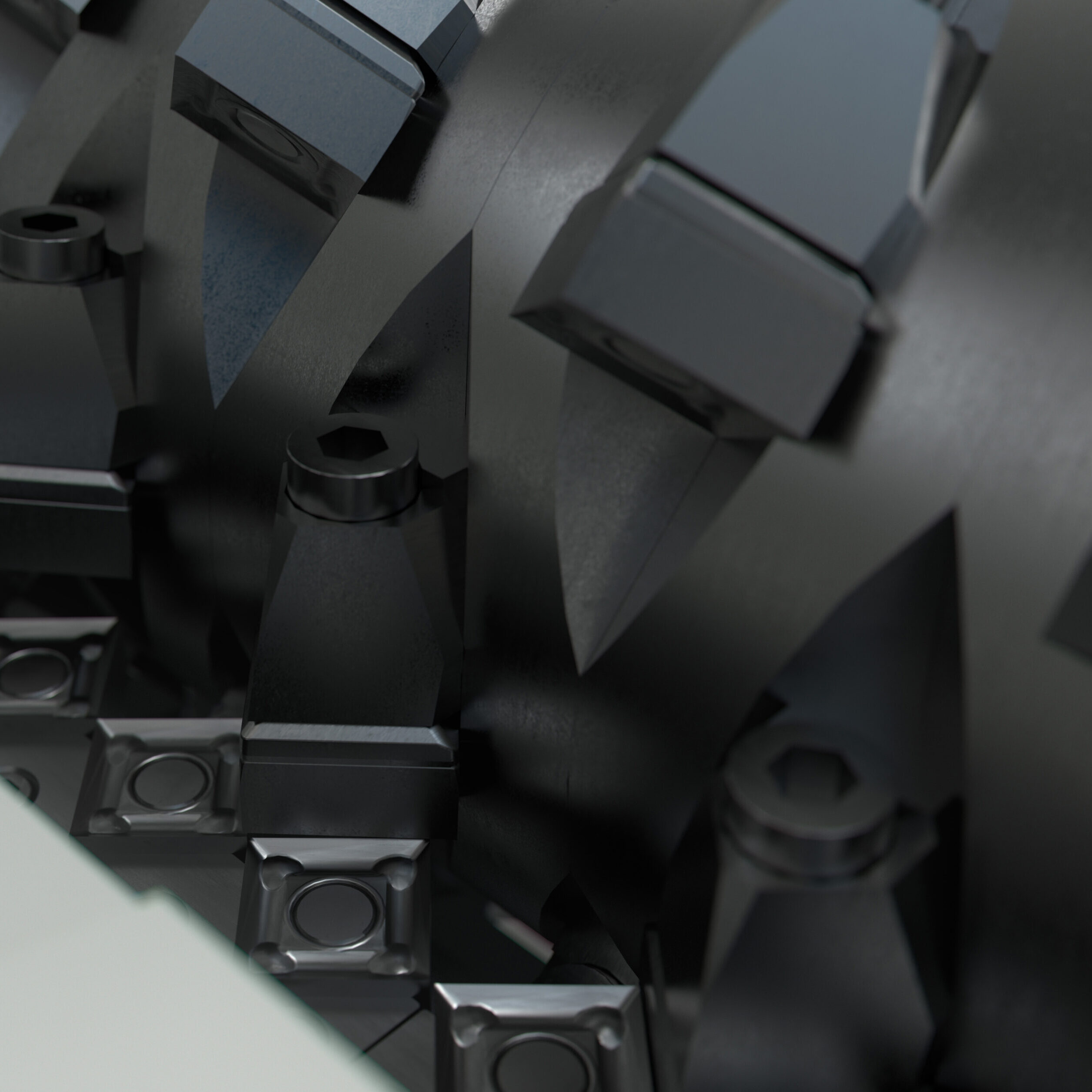

Zero Gap®
Optimal cutting with adjustable knives
Shredding is a wear-intensive function. Zero Gap® shredding means that the particle size and quality are preserved even with wearing of the knives. This technology, patented by BMH Technology, maintains the cutting gap in zero, ensuring optimal cutting.
Thanks to Zero Gap®, the TYRANNOSAURUS® 7500 shredder can process even the thinnest waste materials, such as plastic films and foils. The shredder’s knives are hydraulically adjusted to keep on working optimally and lengthen the service interval.
The clean-cut equals lower power consumption and longer knife lifetime, while maintaining high capacity. All this contributes to achieving the lowest possible production cost.
Interested in an offer?
Contact us for a quote!
What materials can be shredded?
TYRANNOSAURUS 7500 Oversize Shredder is suitable for
Industrial and Commercial waste meaning mostly source-segregated solid waste, which is generated e.g., by manufacturing and industrial processes, stores, offices, restaurants, and warehouses. Consists mainly of cardboard, plastics, and packaging materials.
*Only pre-shredded material
