THE NEW FINE SHREDDER 1200A LAUNCHED IN IFAT MUNICH IN MAY 2024
BMH brought a new Fine Shredder, TYRANNOSAURUS 1200A, to the market in IFAT Munich in May.
The old model, 1200, remains in the product selection until further notice.
Maximise processing efficiency with the new 1200A series shredders

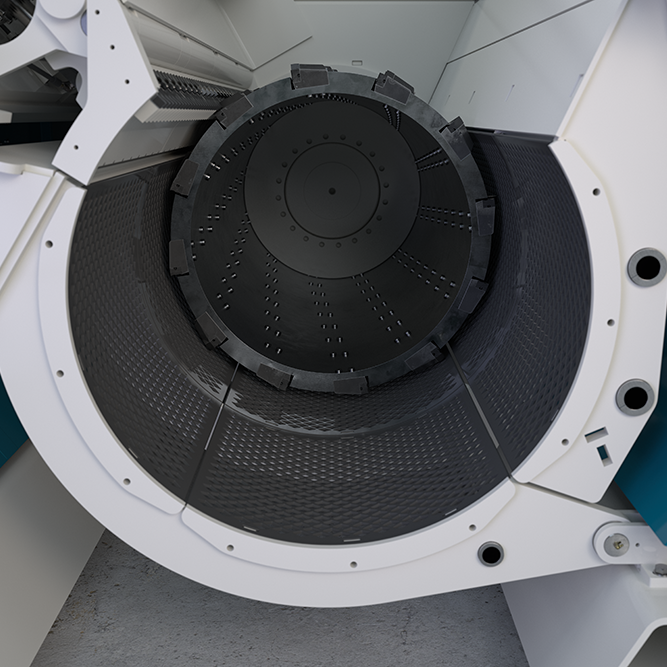

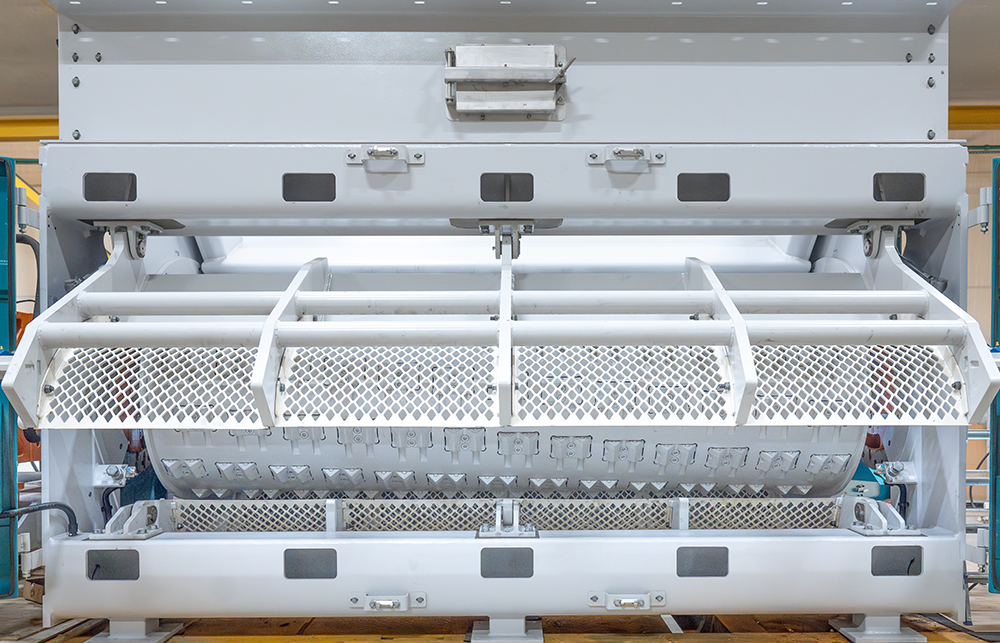

Effective screening is the key to achieving high processing efficiency. In 1200A, the screening area is 50% bigger than in the previous model. This enables easier access for the shredded material to pass through the screen and reduces the heat generated in the process.

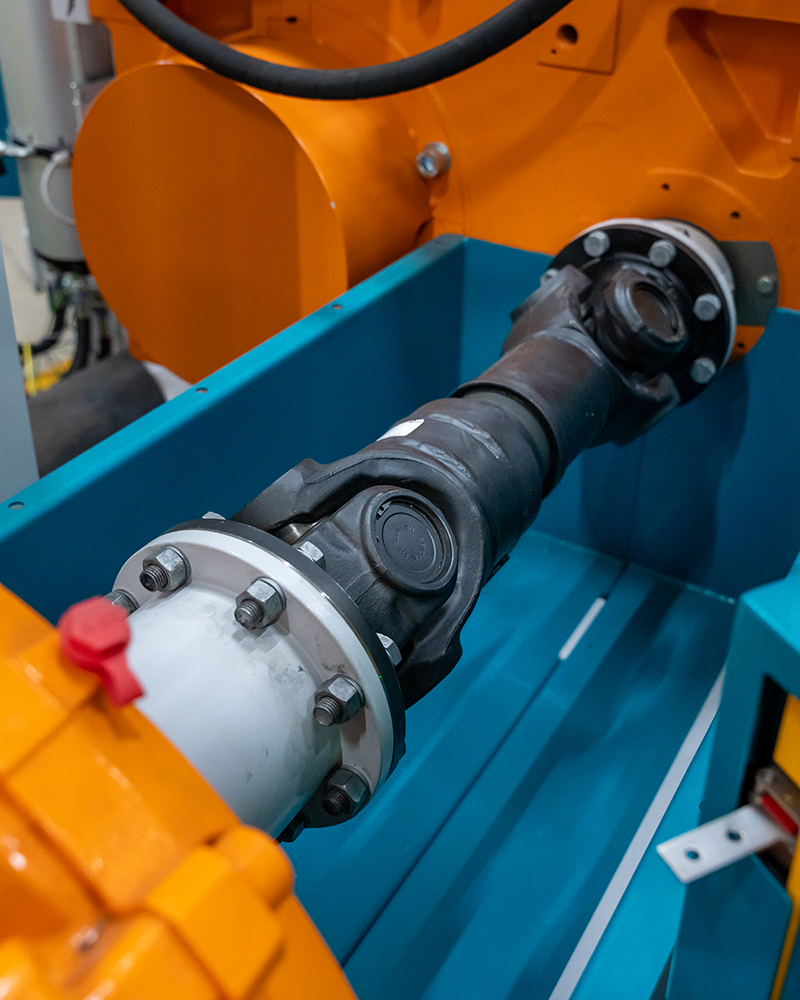

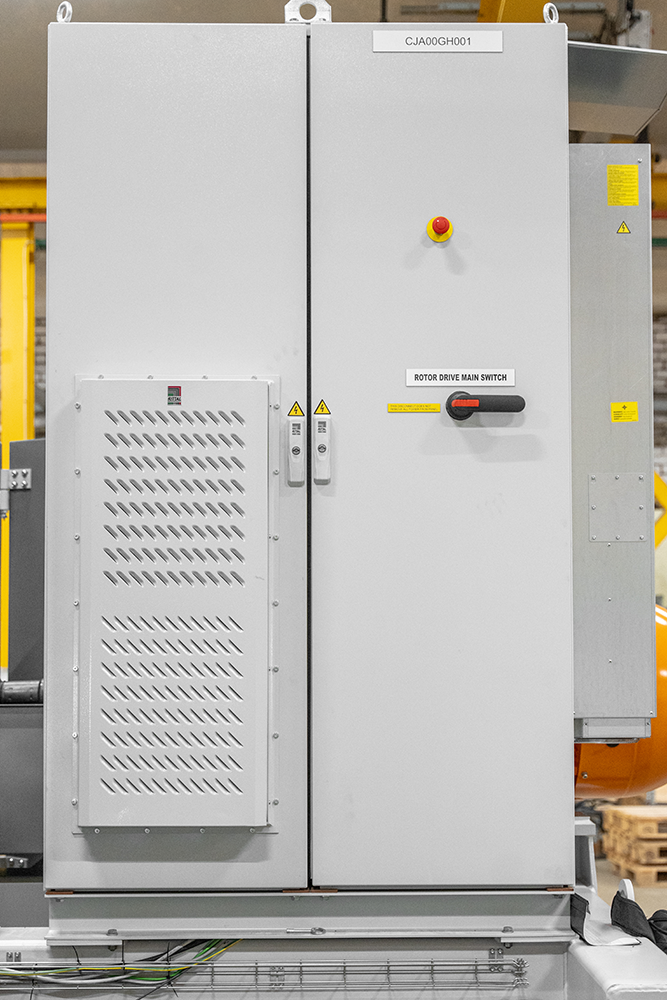

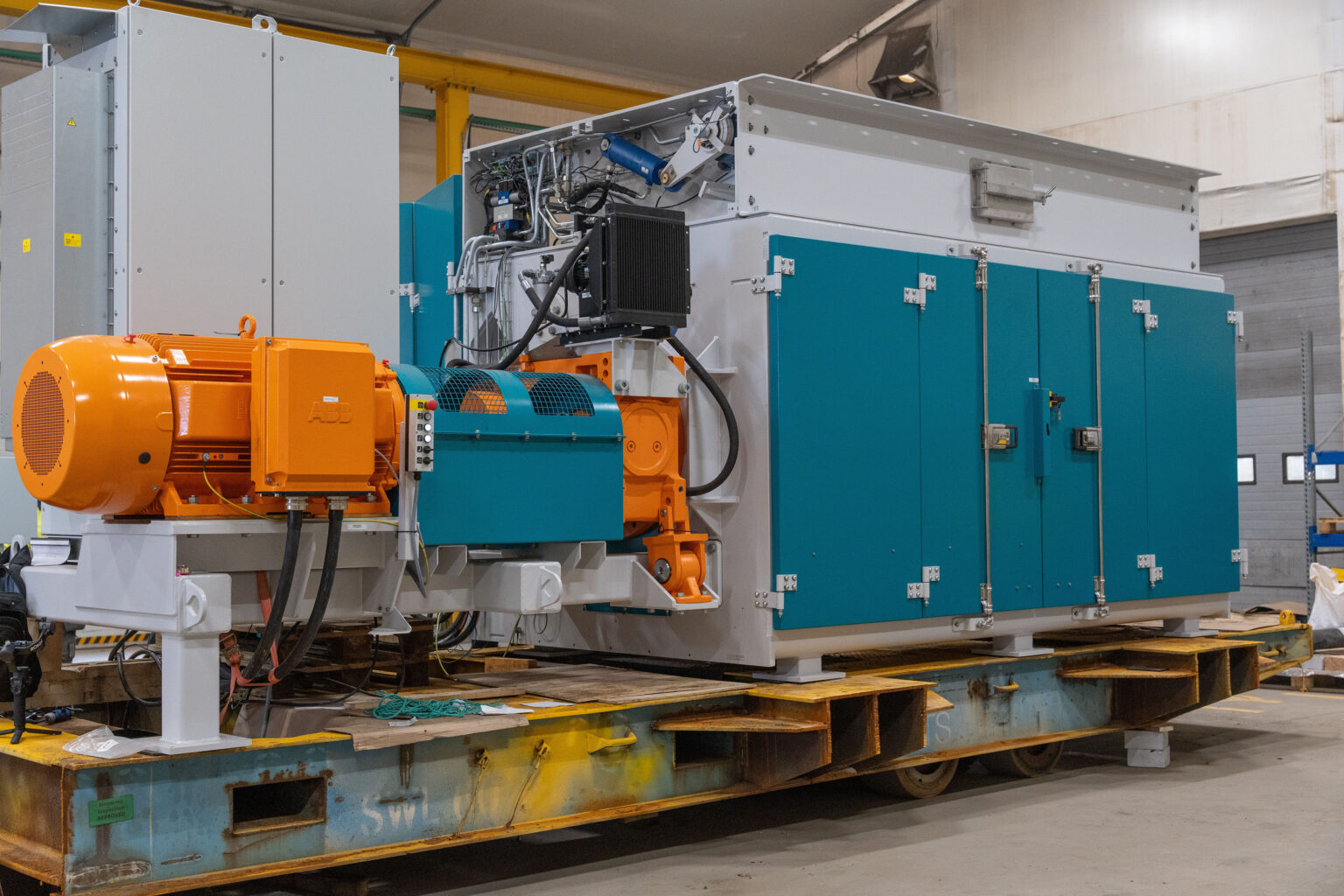

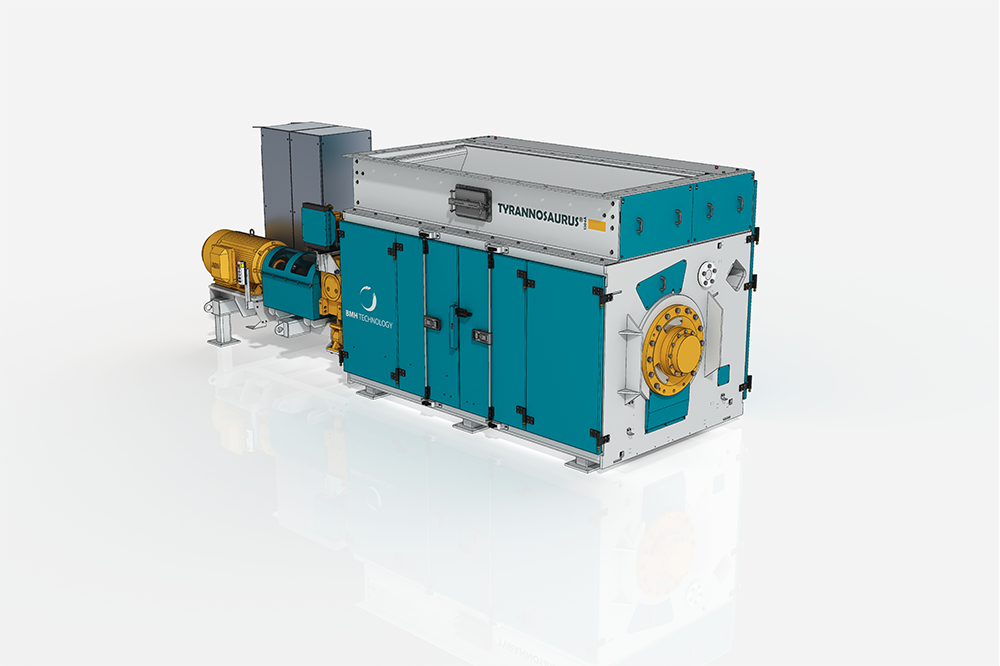

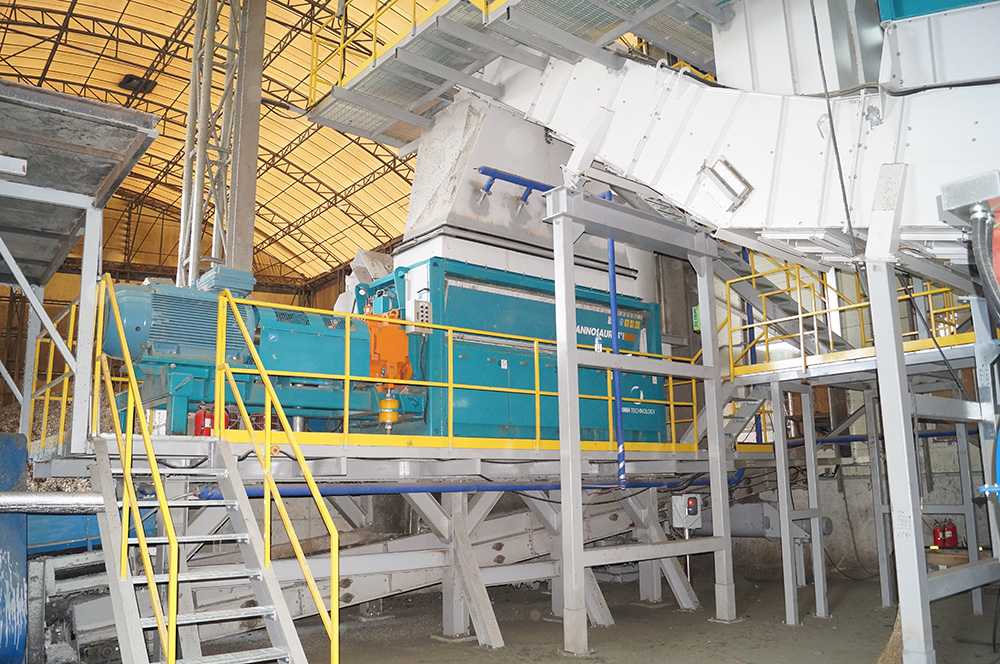

The 1200A series shredders are typically delivered with the electric motor and the control cabinet mounted on an integrated support platform. This arrangement simplifies the shredder’s commissioning and operation. The control cabinet also makes it easy to connect the shredder to the rest of the plant.
Fine shredder for waste
THE FINEST PARTICLE SIZE
WITH CONSISTENCY
For Pre-Shredded and Segregated Solid Waste

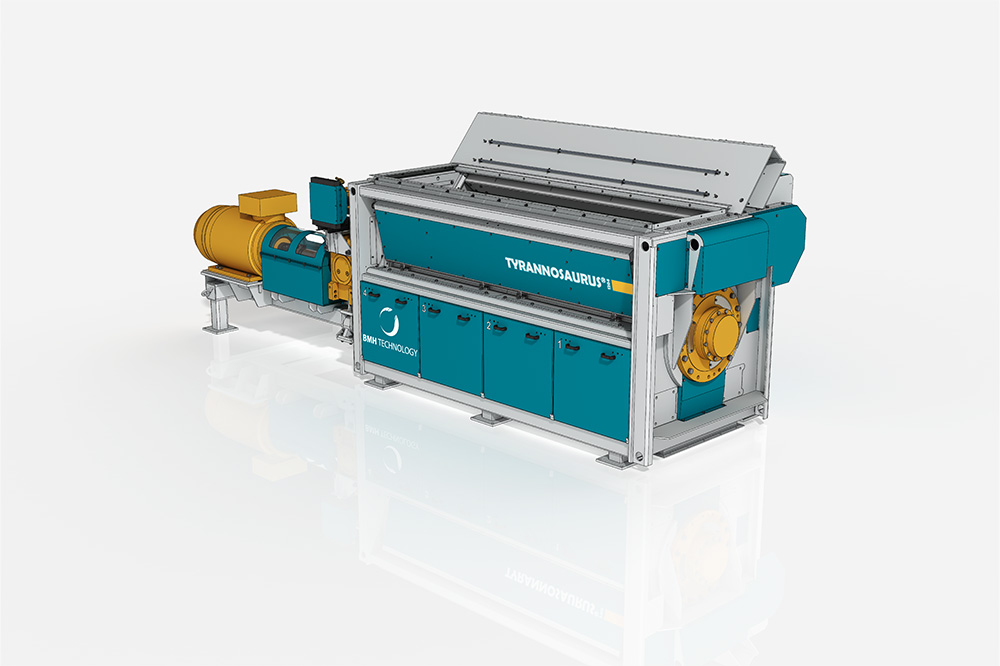

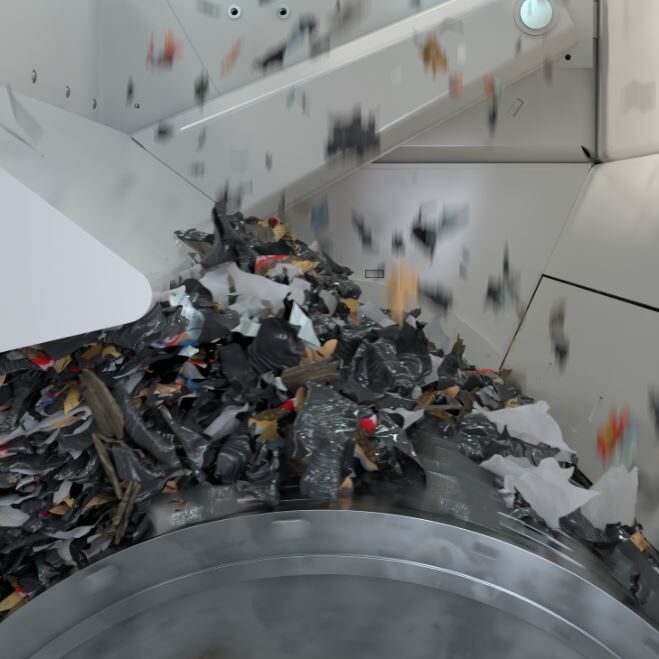

TYRANNOSAURUS® 1200 | 1200A FineShredder for waste is an electrically driven, high-speed, single-rotor shredder.
It's specifically designed for industrial scale refining of pre-shredded and segregated solid waste that needs to be reduced to 20–70 mm for the purpose of increasing fuel combustibility or optimizing the particle size for further processing.
Unique Patented Features
The 1200 | 1200A series is armed with Zero Gap® technology for optimal cutting performance.
Impact Protection™ is a feature of the 1200 | 1200A series that prevents damages from unshreddable items.
Optional Equipment for 1200A
Optional equipment enable reaching an even higher capacity and wider applications. Available options are a pusher, a variety of screens and a support frame.
Main Features and Applications
TYRANNOSAURUS 1200 | 1200A Fine Shredder for waste
1
The 1200 | 1200A series fine shredder plays a significant role in an RDF/SRF process line where the even particle size is a key factor. The 1200 | 1200A shredder will be tailored to produce a desired particle size in the range of 20–70 mm with high capacity.
3
The Impact Protection™ function reduces the need for process stops, shortens the actual stops, allows an easy and fast removal of unshreddable materials and prevents damages to the shredder.
4
Typical applications
for 1200 | 1200A series Fine Shredders are to produce:
- Alternative fuel for cement kilns
- Feedstock for RDF pellets production
- Feedstock for chemical production
Secondary Shredder with Outstanding Capacity
The 1200 | 1200A series Fine Shredder for waste produce RDF/SRF with homogeneous and consistent particle size at high capacity and high availability.
The key factors behind high capacity are:
- The Zero Gap® cutting technology, which maintains the throughput high even when the knives start to wear.

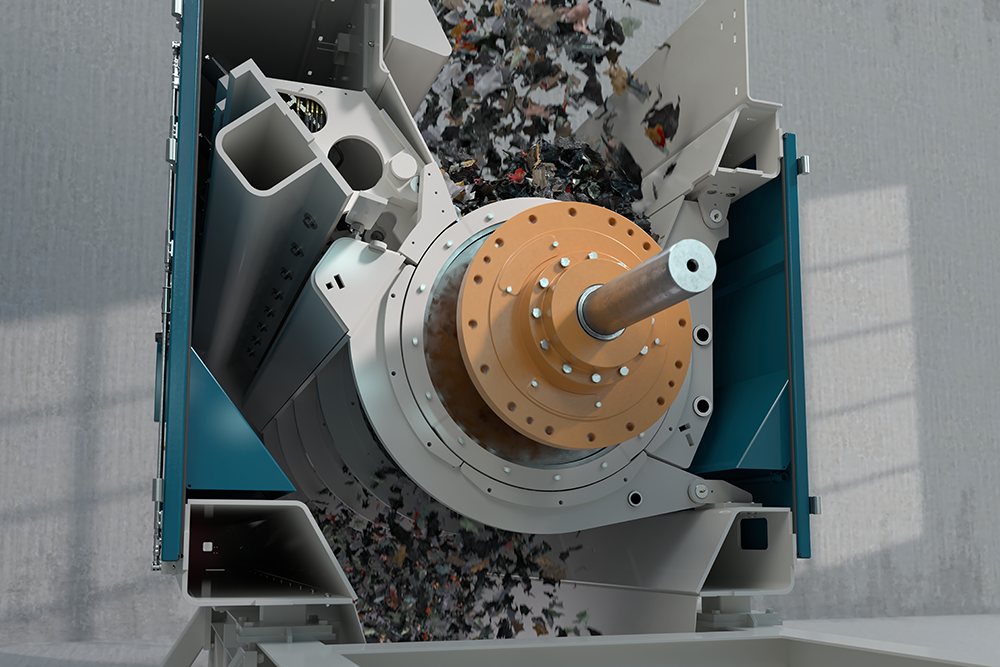

- The rotor that has a large diameter of 1200 mm and houses 312 knives.
- The knife size and rotation speed, which are optimized for high production.
- The spiral knife arrangement that allocates power effectively to each cutting event.

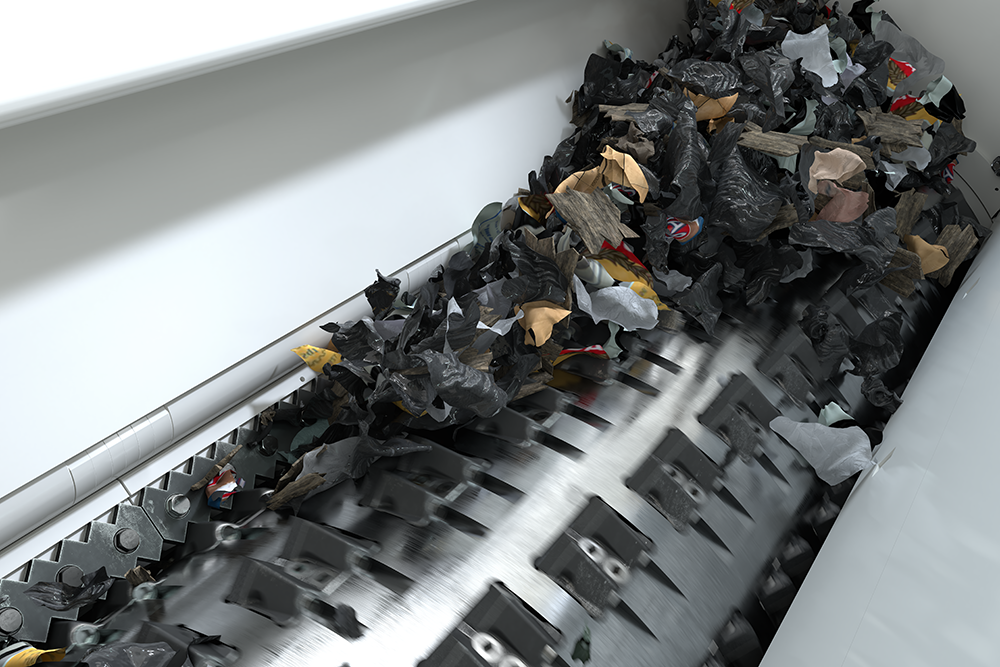

- The automated pusher that presses the material against the rotor.
- High power with reserve for varying load demands.
TYRANNOSAURUS 1200 | 1200A Fine Shredder significantly increases the quality of the produced fuel.
For 1200A series
More capacity and a Wider Application Range with Optional Equipment
PUSHER

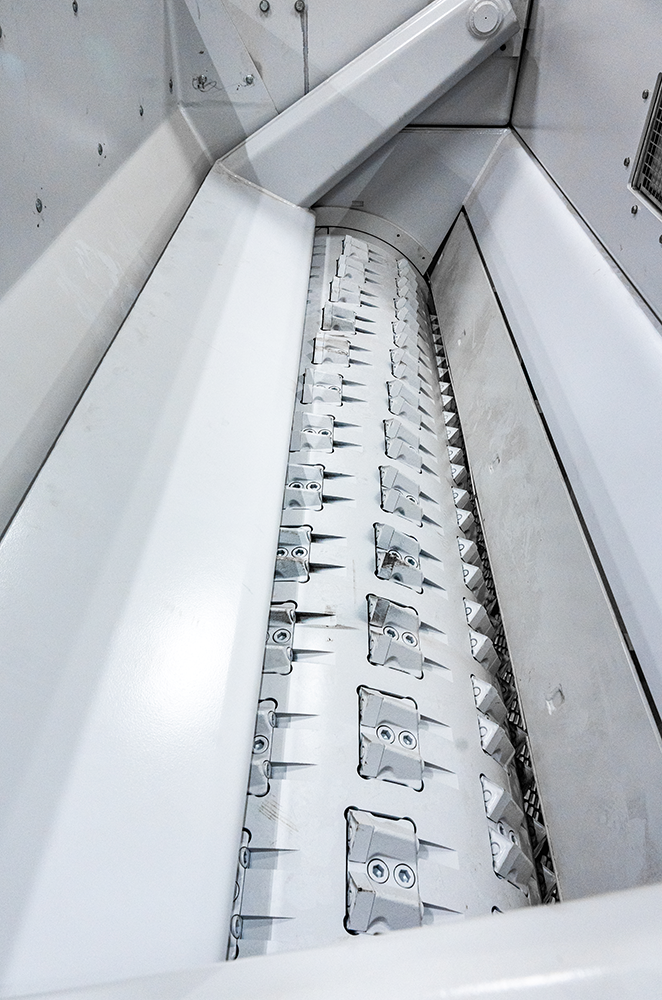

The hydraulically operated pusher efficiently presses the waste against the rotor knives. This keeps up continuous high shredding performance and enables processing lighter input materials.
For very light and fluffy feed materials, the pusher can be extended.
SCREENS
A wide range of available screens secures the shredder’s adaptability to various applications.
The carefully selected aperture size and shape also improve the shredder’s capacity in each application.

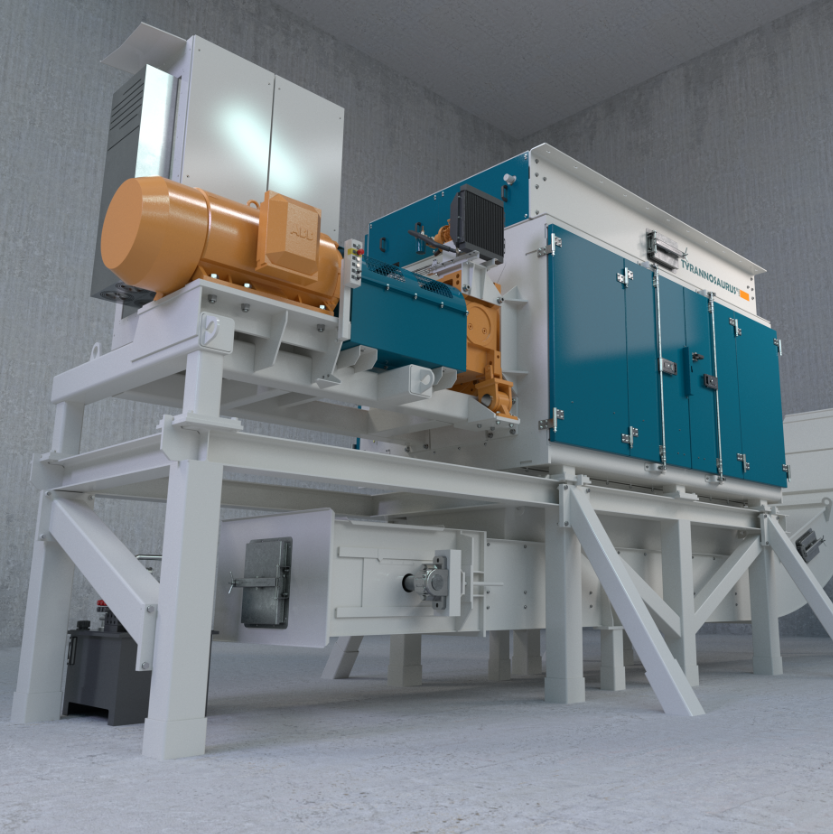

SUPPORT FRAME
The support frame enables installing the shredder easily on top of a discharge conveyor.
Interested in an offer?
Contact us for a quote!
Read more about

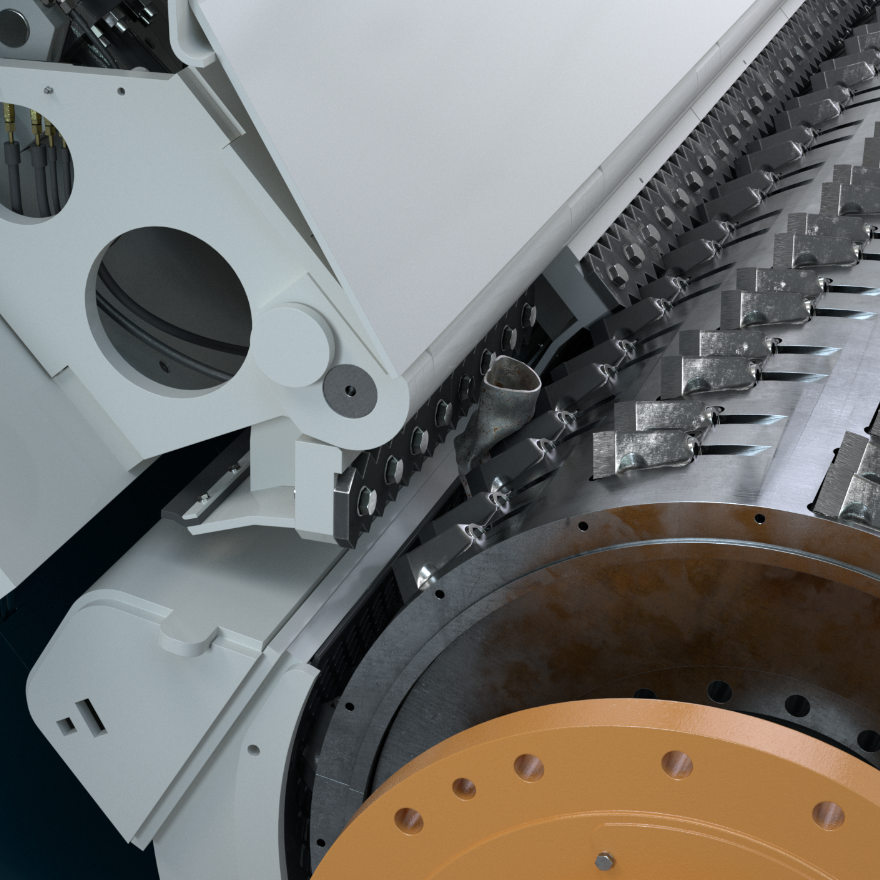

Impact Protection™
Protection against unshreddable objects
Typically, mixed waste streams contain unshreddable materials, such as rocks, scrap metals, and concrete objects. Once the pre-shredded and segregated waste reaches the secondary shredding stage, these objects should already be removed, yet sometimes individual particles remain.
To prevent damages to the shredder, the TYRANNOSAURUS 1200 | 1200A series Fine Shredder for waste is armed with Impact Protection™ function.
It is based on the counter-knives that are held in position hydraulically and allow an easy and fast removal of unshreddable materials.
The Impact Protection™ function both reduces the need for process stops and shortens the actual stops.

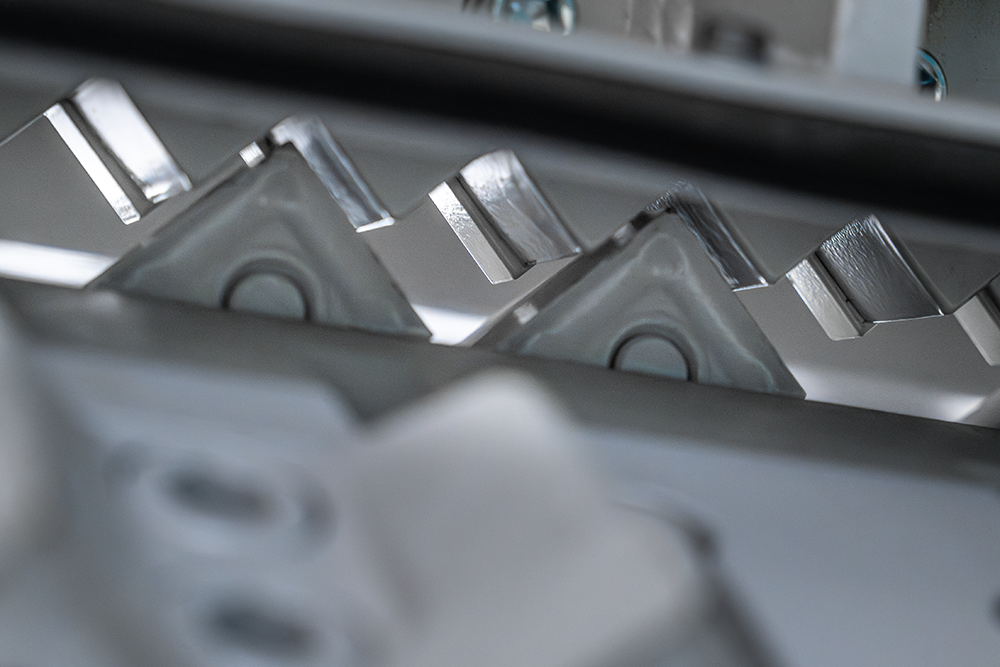

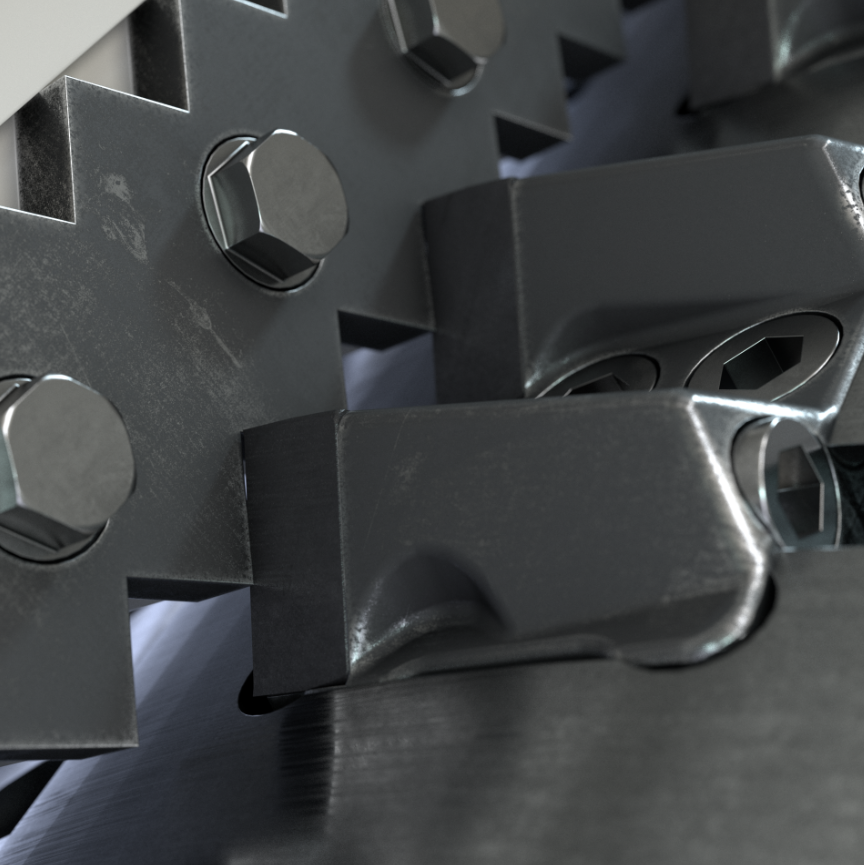

Optimal cutting with adjustable knives
Shredding is a wear-intensive function. Zero Gap® shredding means that the capacity, particle size and quality are preserved even with wearing of the knives.
This technology, patented by BMH Technology, maintains the cutting gap in zero, ensuring optimal cutting and lengthening the service interval.
Thanks to Zero Gap®, the TYRANNOSAURUS® 1200 | 1200A FineShredder can process even the thinnest waste materials, such as plastic films and foils. The shredder’s knives are hydraulically adjusted and each 800 mm section of the counter knives can be adjusted independently.
The clean-cut equals lower power consumption and longer knife lifetime, while maintaining high capacity. All this contributes to achieving the lowest possible production cost.
TYRANNOSAURUS 1200 | 1200A FineShredder is a Combination of High Power and Efficient Cutting Area.
Interested in an offer?
Contact us for a quote!
What materials can be shredded?
TYRANNOSAURUS 1200 | 1200A FineShredder is suitable for
Industrial and Commercial waste meaning mostly source-segregated solid waste, which is generated e.g., by manufacturing and industrial processes, stores, offices, restaurants, and warehouses. Consists mainly of cardboard, plastics, and packaging materials.
*Only pre-shredded material
